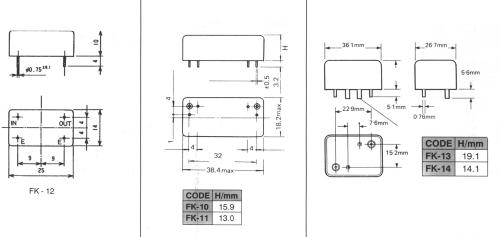

| Standard Crystal Filter Package Sizes
|
Case
|
L mm
|
W mm
|
H mm
|
A mm
|
DΦ mm
|
TYPE
|
|
FK-01
|
7.8
|
3.2
|
6.0
|
3.75
|
0.35
|
UM-5
|
|
FK-01S
|
7.8
|
2.6
|
6.0
|
3.75
|
0.35
|
UM-5S
|
|
FK-02
|
7.8
|
3.2
|
8.0
|
3.75
|
0.35
|
UM-1
|
|
FK-02S
|
7.8
|
2.6
|
8.0
|
3.75
|
0.35
|
UM-1S
|
|
FK-03
|
10.8
|
4.7
|
11.5
|
4.88
|
0.43
|
HC49T
|
|
FK-04
|
10.8
|
4.7
|
13.5
|
4.88
|
0.43
|
HC49U
|
|
 |
|
PACKAGE
CODE
|
L (mm)
|
W (mm)
|
H
(mm)
|
A (mm)
|
B (mm)
|
DF (mm)
|
|
FK-05
|
11.0
|
8.5
|
6.0
|
7.4
|
2.0
|
0.35
|
|
FK-06
|
11.0
|
8.5
|
6.0
|
7.4
|
2.0
|
0.35
|
|
FK-07
|
13.4
|
8.5
|
8.0
|
9.8
|
2.0
|
0.35
|
|
FK-08
|
15.0
|
12.0
|
8.0
|
9.8
|
2.5
|
0.43
|
|
FK-09
|
18.5
|
12.0
|
11.5
|
13.4
|
2.5
|
0.43
|
|
 |
|
PACKAGE
CODE
|
L
(mm)
|
W
(mm)
|
H
(mm)
|
B
(mm)
|
C
(mm)
|
|
FK-15
|
33.0
|
19.1
|
10.7
|
25.4
|
12.7
|
|
FK-16
|
25.4
|
19.1
|
10.7
|
19.1
|
12.7
|
|
FK-17
|
38.4
|
18.2
|
13.0
|
30.0
|
10.0
|
|
FK-18
|
19.1
|
17.8
|
12.7
|
13.5 /8.9
|
12.5
|
|
FK-19
|
40.0
|
20.0
|
11.0
|
31.8
|
10.2
|
|
FK-20
|
38.1
|
19.1
|
20.0
|
30.0
|
9.0
|
|
FK-21
|
57.5
|
19.4
|
24.2
|
48.0
|
9.0
|
|
FK-22
|
25.6
|
19.4
|
24.2
|
16.4
|
9.0
|
|
FK-23
|
24.0
|
17.0
|
15.8
|
18 / 20
|
9.0
|
|
 |
 (zoom) |
|
|
